Radium Catch Can Kit PCV Fluid Lock - 2013-2020 FR-S / BRZ / 86

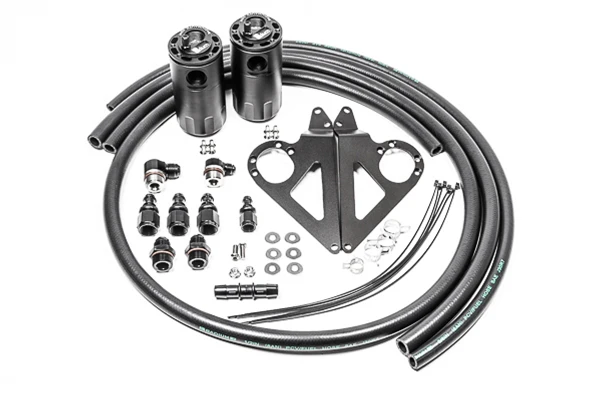

This is the Radium Engineering PCV Fluid Lock Catch Can Kit. Catch can kits are essential to Subaru platforms to protect the engine from elevated levels of crankcase blow-by accumulated from aggressive driving. Excessive oil-saturated air circulating back into the air intake stream can lead to degraded performance. The Radium Engineering catch can kit features large 10AN ORB ports, a 4AN ORB drain port, a 2-step oil separation baffling, and an O-ring sealed dipstick.

Radium Engineering PCV-Side Fluid Lock Catch Can Kit

---

SPECS:

• Designed to fit on the right-side of the engine bay
• PCV-side fluid lock type
• Less oil consumption effectively raises the octane levels
• Cleaner air increases engine performance
• Prevents sludge buildup in the intake
• Lowers hydrocarbon emissions
• Capacity: 7 fluid ounces
• Height Without Fittings: 5 inches
• Outside Diameter: 2.45 inches



PLATFORM SPECIFICS:

• Strategically located for compatibility with right-hand drive and left-hand drive vehicles
• Some brake line clearances are necessary for RHD installation
• These kits are also compatible with aftermarket forced induction kits
• For mounting, the kits use factory bosses and holes in the vehicle so no cutting, drilling, or permanent modifications are needed to the vehicle
• This kit does not vent into the atmosphere making this kit emissions and track legal
• Closed loop systems route clean filtered air back in through the engine to be burned and to promote negative crankcase pressure for optimal performance
• Closed systems prevent unwanted oil vapors into the cabin
• This catch can kit runs in line with the 3/8" PCV valve
• When the intake manifold pressure is close to or greater than atmospheric pressure, the PCV "check" valve closes to experience no flow
• The PCV hose will experience "metered" vacuum when the engine is idling, steady-state cruising, and decelerating
