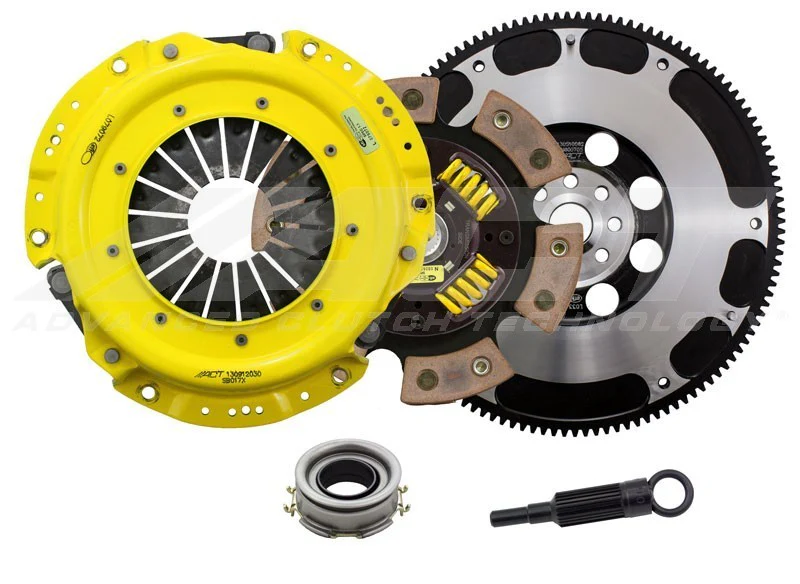

ACT XT / Race Sprung 6 Pad Clutch Kit w/ Flywheel - 2013-2016 Scion FR-S / 2013-2020 Subaru BRZ / 2017-2020 Toyota 86
ACT XT / Race Sprung 6 Pad Clutch Kit w/ Flywheel - 2013-2016 Scion FR-S / 2013-2020 Subaru BRZ / 2017-2020 Toyota 86
ACT XT / Race Sprung 6 Pad Clutch with Flywheel
SB7-XTG6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Â
Feel - Moderate to heavy pedal effort, aggressive engagement, OE to mild gear rattle
Â
Life - Moderate friction life, extended by ACT's exclusive diaphragm design
Â
Quality - Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Â
Recommended Use - Recommended for high horsepower street or race use
Â
ACT Difference - 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Â
Specifications
Part Number: SB7-XTG6Description: XT/Race Sprung 6 Pad
Torque Capacity (ft/lbs): 445
Torque Capacity Over OE: 180%
Flywheel Tooth Count: 124
Disc Type: Race Disc
Spline Count: 24
Spline Size (in.): 1
Disc Diameter (in.): 8.8
Disc Diameter (mm.): 224
Pressure Plate: Xtreme
Product Weight (lbs.): 26.6
